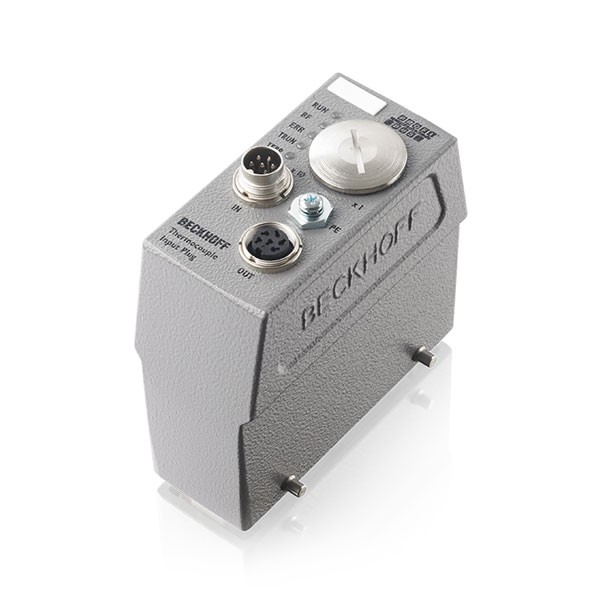

Beckhoff Thermocouple (TC-Plug) Fieldbus interface FM3312-B310 for Injection Machine
Inhouse product
Beckhoff Thermocouple (TC-Plug) Fieldbus interface FM3312-B310 for Injection Machine price in BD? The FM33xx-B310 Fieldbus Modules permit 12 or 32 channel thermocouples to be associated with a module.How to The module’s circuit can work with thermocouple sensors utilizing a 2-wire association.
Through a temperature estimation in the interfacing plugs. This implies that standard augmentation leads can be associated. The Fieldbus Modules have back-voltage assurance hardware to safeguard against outside voltages applied to the thermocouple inputs.
The Industrial plug-in connection 2-wire connectionan IP65 association with the attachment component. Also, lodging type B highlights two cast sections with openings for connecting the FM module to mounting plates (through-opening mounting).
| Fieldbus | PROFIBUS DP | |
| Data transfer rates | Maximum 12Mbaud | |
| Configuration possibility | via KS2000 or the Controller | |
| Fieldbus connection | DIN 45322 6-pin screw type | |
| Thermocouple channels | 12-CH | 32-CH |
| Thermocouple connections | Industrial plug-in connection 2-wire connection | |
| Cable length | max. 10m | |
| Sensor types | Type J, K, mV Measurement | |
| Measuring range | Type J: -10…+900 °C; type K: -100 to +1370 °C | |
| Resolution | 0.1 °C per digit | |
| Conversion time | Approx. 250ms | |
| Measurement | < ±0.5% | |
| Input filter | 5 Variations, Configurable | |
| Power supply | 24 V DC (-15 %/+20 %) | |
| Current Consumption | type 90 mA/max. 120 mA | typ. 100 mA/max. 130 mA |
| Bit width in the process image | Input: 4 x 16 bit data, Optional: 4 x 8 bit Control/status | |
| Electrical Isolation | Channels/Control Voltage: 500 V, between the channels: no, control Voltage/Fieldbus: 100 V (PROFIBUS) | |
| Housing type A | Industrial plug-in Connector, Han24B | |
| Housing type B | add-on housing AGG + locking bracket | |
| Housing pin insert | Han24E | Han64D |
| Contacts | hard gold plated | |
| Dimensions | 120 mm x 52 mm x 129 mm | |
| Weight | Type A: 950g, type 1030g | |
| storage temp. | 0 to +55 °C/-25 to +85 °C | |
| EMC Immunity | EN 61000-6-2/EN, 61000-6-4 | |
| Protect. rating | Housing to IP65 (PROFIBUS Connector: IP67) | |
BD Engineering Solution is the biggest Industrial Automation spare parts Importer in Bangladesh for more information please contact us. We are 24/7 available on our BD Engineering Solution Facebook page.
