Beckhoff Incremental encoder interface

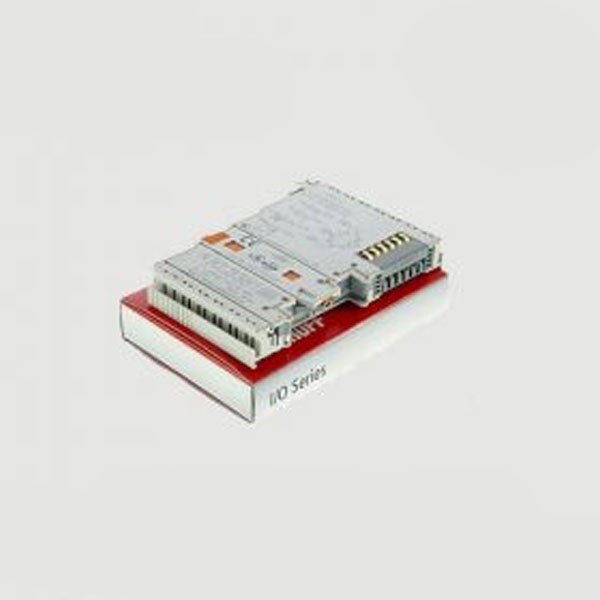

The Beckhoff KL5101 is an incremental encoder interface module card designed for use in Beckhoff’s modular I/O system. This module allows the connection of incremental encoders to a control system, enabling precise position and speed measurements.

Specifications:

• Model Number:KL5101
• Encoder Interface: Incremental encoder
• Number of Channels: 1
• Input Signals: A, B, and Index (Z)
• Signal Type: TTL, RS422
• Counting Frequency: Up to 1 MHz
• Supply Voltage: 24 V DC
• Current Consumption: Typically 70 mA
• Bus Interface: Beckhoff K-bus

Summery:

Complies with relevant industrial standards and certifications for safety and performance. Includes protection against short circuits and other potential faults. The specific aspects such as wiring diagrams, configuration steps, or troubleshooting tips for the Beckhoff KL5101
