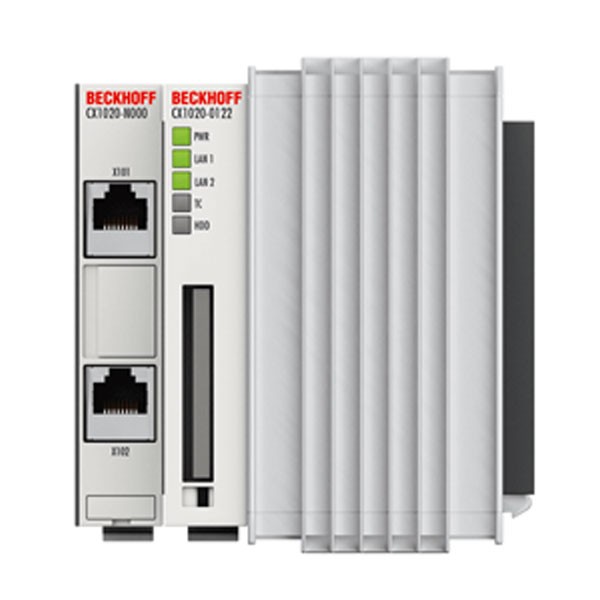

BECKHOFF CPU CX1020-0121-1001; Communication Module CX1020-N010; CX1020-N000; CX1100-0004 Power Supply Model: CX1100-004; System interfaces Model: CX1020-N010; Communication Module CX1020-N000.
BECKHOFF CPU CX1020-0121-1001; Communication Module CX1020-N010 CPU module 1GHz Intel CPU, CPU, and chipset, the CX1020 module. There is also a 128 MB compact flash card in the basic configuration and two ethernets RJ45 interfaces.
These interfaces are connected to an internal switch. This is easy to create a line topology because of the simplest alternative way out without the need for an additional Ethernet switch. System interfaces of Fieldbus connections also adjust to the basic CPU module. The CPU module has the CX1100 power supply module.
Technical Data:
| Module | CX1020-N010 CPU module 1GHz Intel CPU |
| Model Number | CX1020-0121-1001 |
| Flash memory | Slot for the compact flash card, 128 MB included |
| Product Main memory | 256 MB DDR RAM |
| Interfaces Product | 2 * RJ45 10/100 Mbit/s |
| Diagnostics types | LED 1* power, 2* LAN link/activity, TC status, 1 * flash access |
| Expansion type eject mechanism | slot 1 * Compact Flash type I+II |
| Compact flash card | 128 MB |
| Operating system type | Windows Embedded CE 6 and Windows Embedded Standard 2009 |
| Control software name | TwinCAT 2 PLC runtime,NC I runtime, NC PTP runtime, |
| System bus | 16 bit ISA (PC/104) |
| Input Output connection | power supply module like E-bus, K-bus, K-bus/IP-link |
| Power supply | via the system bus (through CX1100-XXXX power supply modules) |
| Dimensions of product (W * H * D) | 96 mm * 112 mm * 99 mm |
| Max. power consumption | 11 W |
| Weight | approx. 550g |
| Operating/ storage temperature | 0..+50°C/-25..+85°C |
