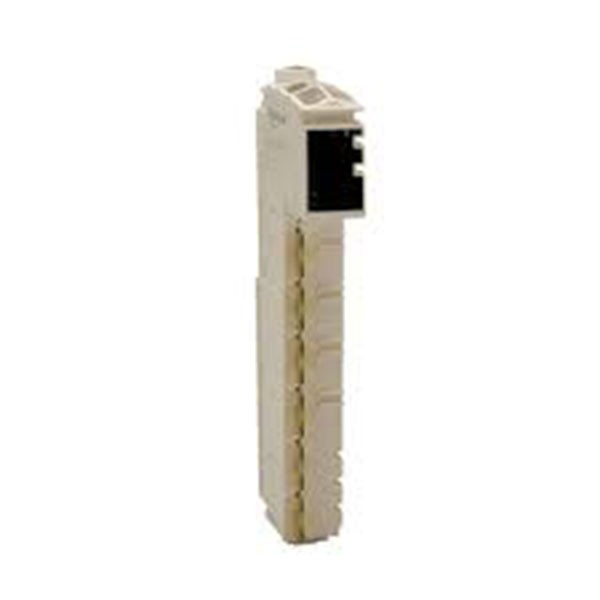

Analog input module TM5SAI4PH 4I,Modicon TM5 Schneider PT100
Inhouse product
Analog input module TM5SAI4PH 4I, Modicon TM5 Schneider TM5 temperature probe PT100/PT1000 Sales price in Bangladesh. keep contact with us.
Technical data:
| Specifications | |
| Component | ACCESSORY |
| Sub Component | Analog Input |
| Brand | Modicon |
| Modicon PLC | 4 |
| Analog Input Type | Pt 100/Pt 1000 |
| Weight | 0.09 |
| Channel | Type | Description |
| ModuleOK | BYTE | I/O modules |
| DcOk | BOOL type | Voltage range: 0.0: Invalid 0.1: Valid |
| reserved | BOOL type | Reserved. |
| NetworkOk | BOOL | TM5 bus: 0.0: Bus error 0.1: OK |
| I/O Data valid | BOOL type | Data validity: 0.0: Valid 0.1: Invalid |
| reserved system | BOOL | Reserved |
| reserved | BOOL type | Reserved system |
| reserved | BOOL | Reserved system |
| reserved system | BOOL type | Reserve |
| Detected ErrorType | Digital Value for Detected Error | Resistance |
| Wire break | #ERROR! | 65535 |
| upper limit value | #ERROR! | 65535 no |
| lower limit value | -32767 | 0 |
| Invalid value | -32768 | 65535 |
Product details-
Schneider TM5SAI4PH input module 4 Pt 100/Pt 1000. Temperature probe – 200-850 °C 16 bits. Logic controller, Motion controller 24 V DC -15-20 %. White IP20IEC 61131-2 IP20 modular I/O-system Expansion modules “Slice” I/Os. The electronic module is designed for temperature. also for resistance measurement. The sensor type must be fixed. our product quality is good. brand new good products.
It is because of the various values for resistance. To save time, individual channels can be deactivated. This is by setting the sensor type to Off. Our service is good. The converted analog values are output by the electronic module. Which is exists in the registers. The resistance or temperature results in separate value ratings and data types. Our service is good. contact us.
Sensor Type and Analog input module TM5SAI4PH-
| Sensor Types | Digital Value | Temperature °C (°F) | Resolution |
| Sensor type PT100 | -2000…8500 | -200…850 | 0.1°C |
| Sensor type PT1000 | -2000…8500 | -200…850 | 0.1°C |
| Resistance | 1…45000 | – | 0.1 Ohm |
| 0.05…2250 Ohm | 1…45000 | – | 0.05 Ohm |
