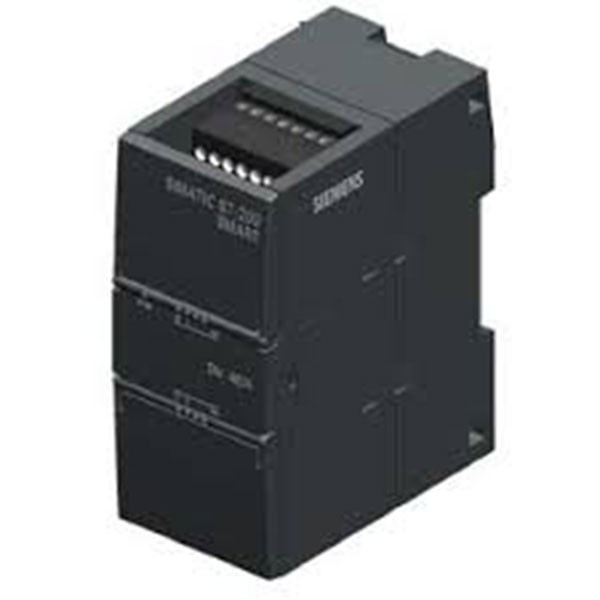

Analog Input EM AI04 6ES7288-3AE04-0AA0 S7-200 SMART

The Analog Input EM AI04 6ES7288-3AE04-0AA0 is an expansion module designed specifically for the Siemens SIMATIC S7-200 SMART PLC system. It adds analog input capabilities to your PLC, allowing it to interact with analog sensor signals.

Technical Data:

• 6ES 7288-3AE04-0AA0 (6ES72883AE040AA0)
• S7-200 SMART Analog input Module EM AI04
• Model No EM AI04 use for S7-200 SMART PLC
• Input AI 4 Analog inputs
• Signal Type of  0…10V,0…5V, +/-5 V, +/-2.5 V, or 0/4-20 mA 11 bit + sign (12 bit ADC)

Specifications (These might vary depending on the specific datasheet):

• Number of Analog Channels: 4 analog input channels.
• Analog Input Range: Likely supports a voltage range like ±10 VDC or 0-10 VDC for the analog input channels.
• Resolution: The resolution refers to the smallest voltage or current change the module can detect on the analog input channels. It might be 12 bits (4096 counts) or higher.
• Connection: Connects to the S7-200 CPU backplane bus for communication with the PLC.

Compatibility:

• This module is designed for the Siemens SIMATIC S7-200 SMART PLC system.
• Ensure the model number of your S7-200 CPU is compatible with the EM AI04 module. You can find compatibility information in the datasheet or consult the Siemens documentation.

Additional Considerations:

• Data Sheet: Refer to the datasheet for the specific model number (6ES7288-3AE04-0AA0) to get the most accurate details on specifications, wiring diagrams, and configuration settings. You can find the datasheet by searching online or through Siemens resources like Siemens Industry Mall (Site).
• Programming: The S7-200 PLC program needs to be configured to handle communication with the analog I/O module and process the analog data for control purposes. Siemens STEP 7 Basic software is commonly used for programming the S7-200.

Benefits of using Analog Input EM AI04:

• Enables your S7-200 SMART PLC to interact with analog sensors, expanding its functionality in process control applications.
• Provides digital representations of real-world physical quantities measured by sensors.

I hope this explanation clarifies the function of the Analog Input EM AI04 module for the Siemens SIMATIC S7-200 SMART PLC system. Remember that the specific details might vary depending on the datasheet and the version of the module you have.
