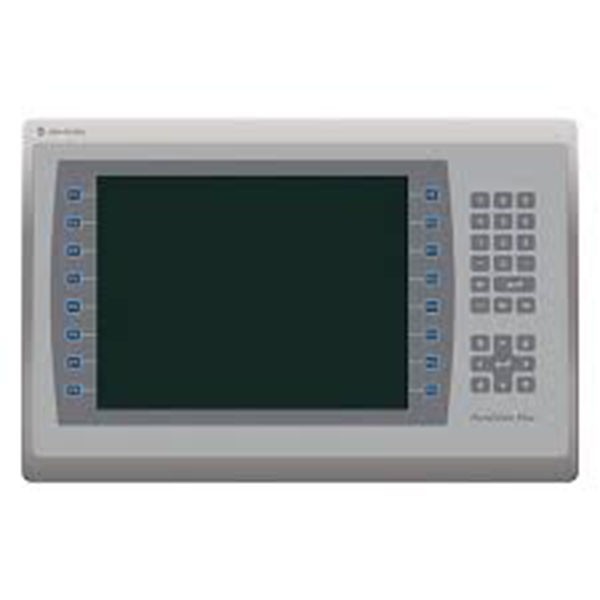

Allen Bradley 2711P-T12W22D9P-A Panelview Plus 7 HMI Panel
Inhouse product
Allen Bradley 2711P-T12W22D9P-A Panelview Plus 7 HMI Panel
The Allen Bradley PanelView Plus 7 hmi which is model 2711P-T12W22D9P-A have a color display with a touch screen, touch screen hmi, for operator control. The Allen Bradley 2711P-T12W22D9P-A Panelview Plus 7 HMI Panel.
Graphical Panel Terminals Support Safety Extra Low Voltage (SELV) and Low Voltage (PELV) 24V DC Power Supplies such as model 1606-XLP95E / 1606-XLP100E / 2711P-RSACDIN.
Description of PanelView Plus 7 hmi:
The Allen-Bradley 2711P-T12W22A9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) contrivance is powered by an external supply voltage of 18-32VDC.
PanelView HMI is 12.1-inch Color active matrix, thin-film transistor (TFT) LCD wide screen with embedded Touchscreen operator interface. It has a variety of communication ports such as, Two (2) Ethernet and Three (3) USB ports. There have Allen-Bradley 2711P-T12W22D9P-A Panelview Plus 7 HMI Panel which is 12.1inch panel touch glass operation.
Technical Specification:
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Backlight: | White light-emitting diode, solid state Life of 50,000h min at 40°C |
| Power Consumption: | 50 W max (2.1 A at 24V DC) |
| Input Voltage range: | 18-30 VDC |
| Communication ports: | Two (2) Ethernet, Three (3) USB host |
| System Memory: | 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory) |
| Touch: | Analog resistive Actuation: 1 million presses; operating force: 100 g |
| Resolution: | 1280 x 800 WXGA, 18-bit color graphics |
| Display Area: | 261 x 163 mm (10.3 x 6.4 in.) |
| Operator Input: | Touch |
| Product Family: | PanelView Plus 7 |
