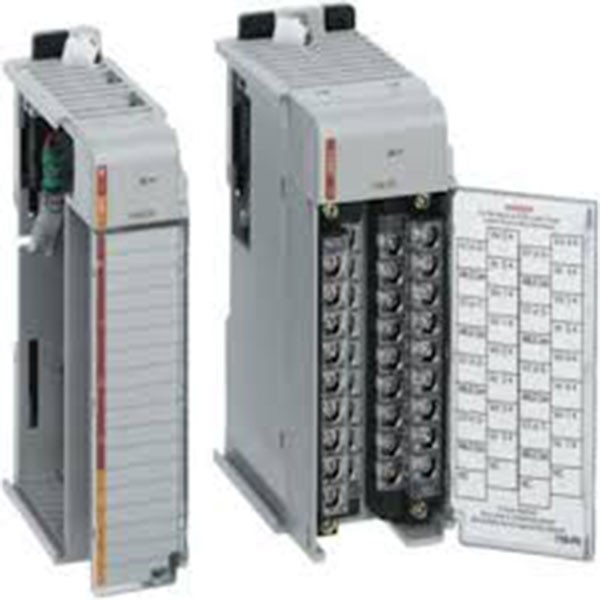

Allen-Bradley 1769-IF4 XOF2 CompactLogix A Series 4 In/2 Out Analog Module
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
ASK PRICE
/Pcs
Share:
Top Selling Products
Allen-Bradley 1769-IF4XOF2 CompactLogix A Series 4 In/2 Out Analog Module. Now available on bd engineering solution for more information please contact us as soon as possible. We are the best industrial automation spare parts seller in Bangladesh. We are always available on social sites 24/7 follow this link and contact us at BD Engineering Solution
Allen-Bradley 1769-IF4XOF2 Specification
| Specification Allen-Bradley 1769-IF4XOF2 | Value |
| Dimensions | 118 mm (height) x 87 mm (depth) x 35 mm (width) height including mounting tabs is 138 mm 4.65 in. (height) x 3.43 in (depth) x 1.38 in (width) height including mounting tabs is 5.43 in. |
| Approximate Shipping Weight (with carton) | 300g (0.65 lbs.) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Operating Altitude | 2000 meters (6561 feet) |
| Vibration | Operating: 10 to 500 Hz, 5G, 0.030 in. peak-to-peak Relay Operation: 2G |
| Shock | Operating: 30G, 11 ms panel mounted (20G, 11 ms DIN rail mounted) Relay Operation: 7.5G panel mounted (5G DIN rail mounted) Non-Operating: 40G panel mounted (30G DIN rail mounted) |
| Agency Certification | • C-UL certified (under CSA C22.2 No. 142) • UL 508 listed • CE compliant for all applicable directives |
| Hazardous Environment Class | Class I, Division 2, Hazardous Location, Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213) |
| Radiated and Conducted Emissions | EN50081-2 Class A |
| Electrical /EMC: | The module has passed testing at the following levels: |
| • ESD Immunity (IEC1000-4-2) | • 4 kV contact, 8 kV air, 4 kV indirect |
| • Radiated Immunity (IEC1000-4-3) | • 10 V/m , 80 to 1000 MHz, 80% amplitude modulation, +900 MHz keyed carrier |
| • Fast Transient Burst (IEC1000-4-4) | • 2 kV, 5kHz |
| • Surge Immunity (IEC1000-4-5) | • 1 kV galvanic gun |
| • Conducted Immunity (IEC1000-4-6) | • 10 V, 0.15 to 80MHz(1) |
