The maximum number of weft insertion

maximum weft insertion

Rate can reach 1235m/min (depending on fabric types);

Weft

short fiber7 to 60tex ( 80 to 10Ne )

(need additional device if below 10)

Long fiber

5 to 44tex (40 to 400den );

The main transmission

use AC starting torque motor direct starting,

slow forward and reverse running

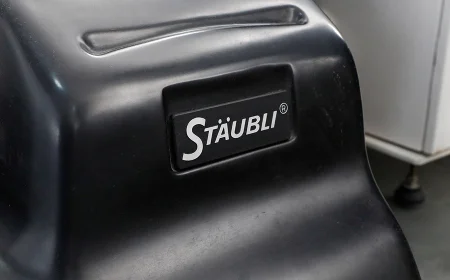

Shedding

crank, cam, electronic dobby, jacquard

Beating-up

bilateral four connecting rod, the six

connecting rod beating-up

Let-off

electronic let-off

Take up

electrical

Stops

6 lines of electronic stopping device

Weft stop

double weft detection

Weft supply

single color, two-color,four-color mixed free weft, weft

Sevage

leno (rough and plain)

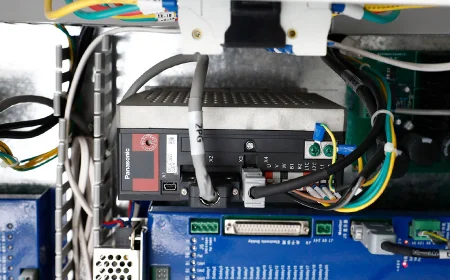

Electrical control

using programmable computer controller as the

core,Can set all kinds of weaving parameters

Lubrication

the big gear, let-off, take-up gear box with the oil bath type lubrication,

the other by forced centralized oil supply mode

Power

4750px:2.6kw，5750px:2.8kw，7000px:3.7kw
