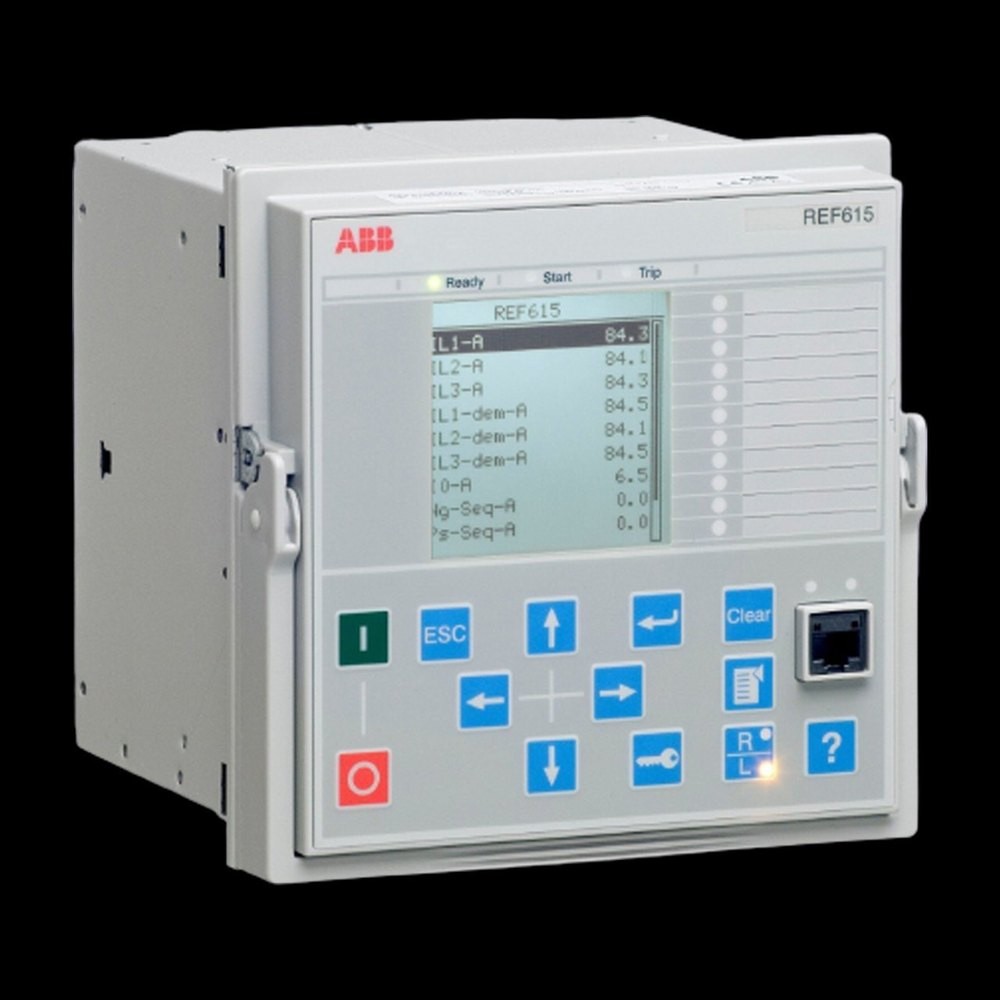

ABB REF615 Feeder Protection Relay

(0 reviews)

Sold by:
Inhouse product

Price:

ASK Price /PCS

Top Selling Products

SKF 6004-2Z Deep groove ball bearing with seals or shields

ASK Price
ABB magnetic contactor 200…230Vac 50Hz AX 40-30-10-80

ASK Price
SIEMENS 3RT MAGNETIC CONTACTORS (S00 TO S12) DC Coils 110A , 55KW, 1NO+1NC 3RT2047-1N..0

ASK Price
SIEMENS SIM CODE Pro V on Modbus RTU with 110-240 VAC/DC Control 3UF7012-1AU00-0

ASK Price
SIEMENS AIR CIRCUIT BREAKER 3WT8206-4F,2000, 4P ,66KA , LSI ,FIEXED , ACB

ASK Price
SIEMENS THERMAL OVERLODE RELAY- 3UA5800-2TZ1-50A........63A- Overlode relay- 3TF46/47/48/49

ASK Price

Description reviews

Current Rating	5A
Brand	ABB
Voltage	110-250
Height	177mm (4U)
Width	177mm
Depth	201mm (153 + 48 mm)
Plug-in Unit Only Weight	2.1kg
Complete Protection Relay Weight	4.1kg
Nominal Auxiliary Voltage Un	100, 110, 120, 220, 240 V AC, 50 and 60 Hz
Auxiliary Voltage Variation	38...110% of Un (38...264 V AC)
Ripple in the DC Auxiliary Voltage	Max 15% of the DC value (at frequency of 100 Hz)
Fuse Type	T4A/250 V
Current Inputs	0.2/1 A1)
Rated Frequency	50/60 Hz
Current Sensor Input	75 mV...9000 mV1)
Current Drain	1.6...1.9 mA
Power Consumption	31.0...570.0 mW
Reaction Time	<3ms
Availability	In Stock

REF611,Measurement for 3I, I0, 10 DI + 9 DO, One front RJ45 Port, One Rear FO Port(LC) for IEC-61850 Protocol, Feeder Protection Relay, Protections 50,51,50N,51N,46,49,95
