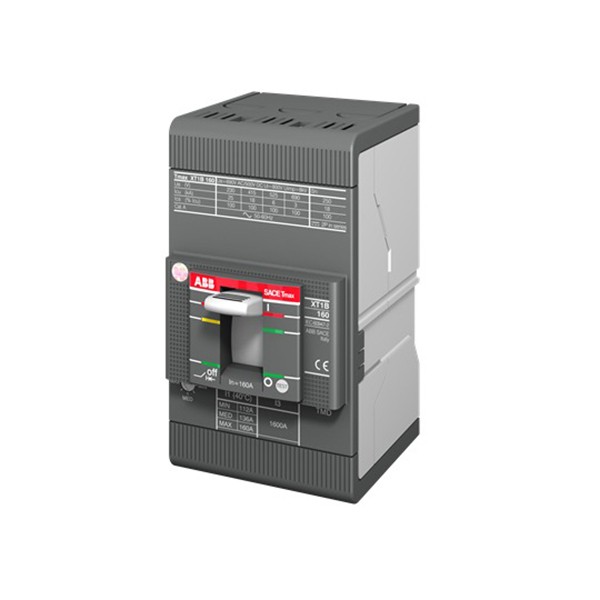

The ABB XT1C 160 TMD 25-450 3p F F is a high-performance Moulded Case Circuit Breaker (MCCB) engineered for reliable protection in industrial and commercial electrical systems. It combines robust construction with advanced thermomagnetic trip technology to safeguard circuits against overloads and short circuit

Key Description – ABB XT1C 160 TMD 25-450 3p F F

• Product Type: Moulded Case Circuit Breaker (MCCB)

• Brand: ABB

• Model: XT1C 160 TMD 25-450 3p F F

• Rated Current: 25 Amps

• Breaking Capacity: 25 kA at 415V AC

• Release Type: Thermomagnetic (TMD) – provides overload and short-circuit protection

• Poles: 3 Pole

• Trip Unit Range:

  • Adjustable Overload Protection: 17.5 – 25 A

  • Fixed Short-Circuit Protection: 450 A

• Voltage Ratings:

  • Operating Voltage: Up to 690V AC / 500V DC

  • Insulation Voltage: 800V

  • Impulse Withstand Voltage: 8 kV

• Terminal Type: Fixed terminals (bolt-on, front connection)

• Frame Size: XT1C 160 (suitable for up to 160 A frame applications)

• Installation: Suitable for fixed mounting in panels

• Compliance: Conforms to IEC 60947-2 standard

• Use Case: Ideal for industrial, commercial, and panel board applications requiring reliable circuit protection

• Country of Origin: Usually manufactured in Italy or other ABB-certified locations

• Typical Applications:

  • Distribution panels

  • Machine protection

  • Subpanels in commercial buildings

  • Generator and motor protection
