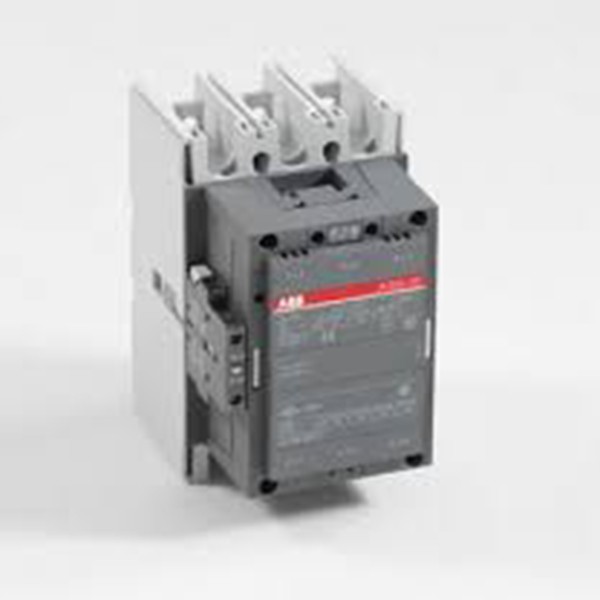

The ABB AF305-30-11-13 is a high-capacity 3-pole magnetic contactor with a wide-range electronic coil (100–250V AC/DC, 50/60Hz). It is designed for controlling motors up to 160 kW (400V). The contactor includes 3 NO (Normally Open) main contacts and 1 NO + 1 NC auxiliary contact. With advanced electronic control, the AF305 ensures reliable performance under voltage fluctuations and is ideal for demanding industrial applications.

Key Features:

• Control Voltage Range: 100–250V AC/DC, 50/60Hz

• Main Contacts: 3 NO (Normally Open)

• Auxiliary Contacts: 1 NO + 1 NC

• Motor Power Rating: Up to 160 kW (400V)

• Electronic coil technology ensures stable operation during voltage dips

• Built-in surge suppression (no external device required)

• Low coil power consumption = energy saving

• Compact and modular design for easy panel integration

• Flexible mounting: DIN rail or screw mountable

• Standards Compliance: IEC, UL, and CSA
