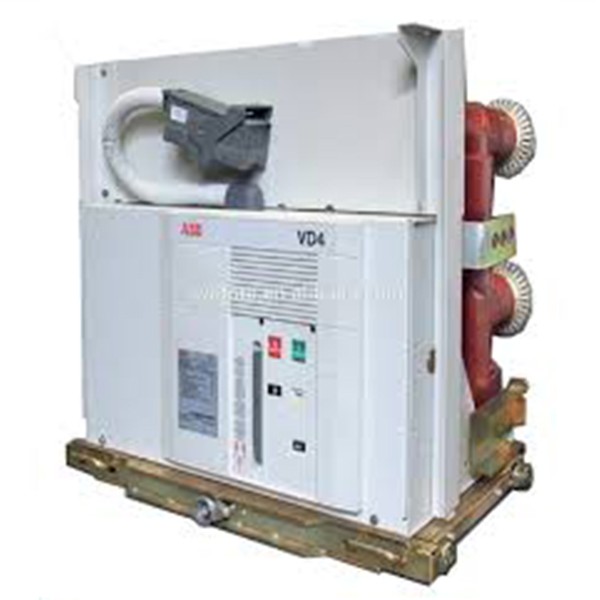

The ABB VD4/P 12.12.25 Vacuum Circuit Breaker (VCB) is a high-performance indoor medium-voltage breaker rated at 11kV, 1250A, with a short-circuit breaking capacity of 25kA. This model incorporates ABB's proven vacuum interrupter technology to ensure safe, arc-free interruption and long operational life.

The /P designation refers to a specific variant designed for easy integration with modern switchgear panels. The inclusion of a female socket (L=0.8) facilitates secure plug-in connections, enabling faster installation and maintenance.

Equipped with:

• MO1 – Spring-charged mechanical operating mechanism

• MC – Mechanical interlock system for safe operation

• MS – Mechanical shutter protecting live parts

• BB1-2 – Busbar and interlocking modules for panel integration

• Female Socket (L=0.8) – Plug-in connection for compact switchgear assemblies

Ideal for utilities, industrial plants, and commercial infrastructure requiring reliable high-capacity breakers with compact and modular designs.

✅ KEY FEATURES

• ⚡ Rated Voltage: 11kV

• ? Rated Current: 1250A

• ? Breaking Capacity: 25kA (short-circuit)

• ? Vacuum Interrupter Technology: Clean, reliable arc interruption with long lifespan

• ?️ MO1 Operating Mechanism: Spring-operated; manual or motor-driven

• ? MC Interlock: Prevents unsafe operations such as racking under load

• ?️ MS Shutter: Automatically covers live terminals during maintenance

• ? BB1-2 Modules: Safe busbar connection and panel interlocking

• ? Female Socket (L=0.8): Enables plug-in type panel integration for easy installation

• ? Low Maintenance Design: Vacuum interrupters require minimal servicing

• ? Standards Compliance: IEC 62271-100 certified

• ? Applications: Indoor switchgear in substations, industrial distribution, commercial buildings requiring compact and high-capacity breakers
