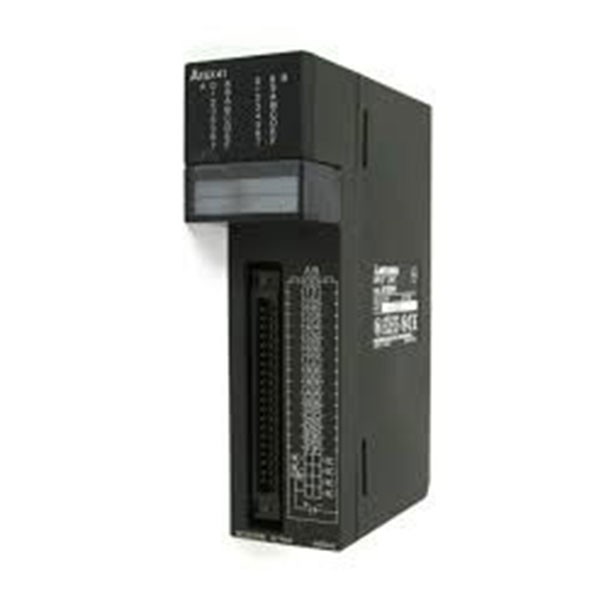

The A1SJ71UC24-R4-S2 is a serial MODBUS interface module manufactured by Mitsubishi Electric, designed for use with their PLC (Programmable Logic Controller) systems. Here’s an overview of this module and its functionalities:

Mitsubishi A1SJ71UC24-R4-S2 Serial MODBUS Interface Module:

• Purpose: The A1SJ71UC24-R4-S2 module serves as an interface between Mitsubishi PLC systems and devices using the MODBUS RTU protocol over serial communication.
• Communication Protocol: Supports MODBUS RTU, which is a widely used protocol for communication between industrial devices.
• Interface: Provides RS-232 and RS-485 serial ports for connecting external devices such as sensors, actuators, meters, and other equipment.
• Compatibility: Designed for integration with Mitsubishi PLCs to expand their communication capabilities.

Key Features:

• Serial Ports: Typically includes multiple serial ports (RS-232 and RS-485) for connecting to different types of devices.
• Baud Rate Settings: Configurable baud rates to match the communication requirements of connected devices.
• Data Handling: Manages data transmission and reception between the PLC and external devices, supporting read/write operations.
• Addressing: Utilizes MODBUS addressing schemes for identifying and accessing specific registers or data points on connected devices.
• LED Indicators: Provides visual indicators to show communication status and error conditions for diagnostics.

Applications:

• Industrial Automation: Integrates with various industrial equipment and devices that support MODBUS RTU protocol for data acquisition and control.
• Building Management Systems: Communicates with HVAC systems, lighting controls, and other building automation devices.
• Energy Management: Interfaces with energy meters and monitoring devices for tracking consumption and optimizing energy usage.
• Process Control: Monitors and controls process variables such as temperature, pressure, and flow rates in manufacturing processes.

Programming and Configuration:

• Configuration Tool: Utilizes Mitsubishi GX Works software or other programming tools compatible with Mitsubishi PLCs for configuration and programming.
• Setup: Configure communication parameters such as baud rate, parity, data bits, and stop bits through software settings.
• Integration: Program the PLC to interpret MODBUS messages and handle data exchanges with connected devices.

Benefits:

• Expandability: Allows Mitsubishi PLCs to interface with a wide range of third-party devices supporting MODBUS RTU protocol.
• Flexibility: Supports both RS-232 and RS-485 interfaces for versatile connectivity options.
• Standardization: Utilizes a widely accepted industrial protocol (MODBUS) for interoperability with various equipment brands.
• Reliability: Provides robust communication capabilities essential for industrial automation applications.

Summery:

The Mitsubishi A1SJ71UC24-R4-S2 Serial MODBUS Interface Module enhances the communication capabilities of Mitsubishi PLC systems, enabling seamless integration with devices using the MODBUS RTU protocol.
