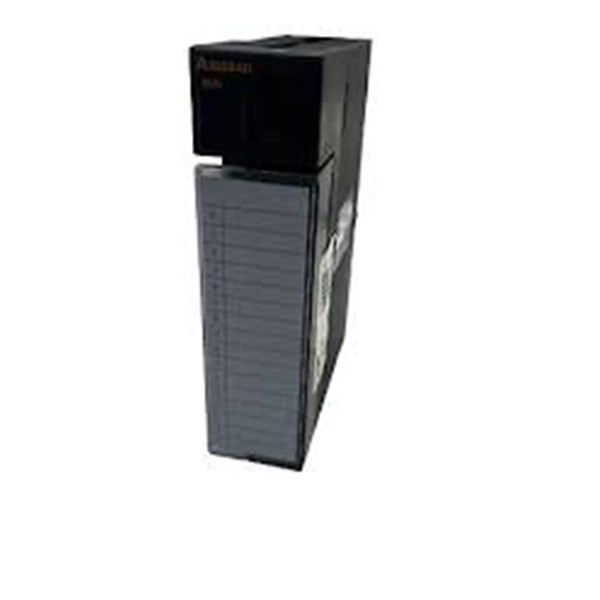

A1S68AD Mitsubishi Analog-Digital Converter-Module

The A1S68AD is an analog-to-digital converter (ADC) module manufactured by Mitsubishi Electric, specifically designed for their MELSEC A Series programmable logic controllers (PLCs). This module is used to interface analog signals from sensors, transducers, or other analog devices into the PLC system for monitoring and control purposes.

Key Features:

• Analog Input Channels: Typically supports multiple analog input channels (e.g., 8 channels).
• Input Signal Types: Compatible with various analog signal types such as voltage (0-10V DC, ±10V DC) and current (4-20mA).
• Resolution: Provides high-resolution conversion of analog signals to digital values, ensuring accuracy in measurement.
• Isolation: Offers isolation between analog inputs and PLC internal circuits, enhancing noise immunity and signal integrity.
• Scanning Time: Fast scanning time for rapid response to changes in analog input signals.
• Compatibility: Designed specifically for integration with Mitsubishi MELSEC A Series PLCs.

Specifications:

• Model: A1S68AD
• Number of Channels: Typically 8 analog input channels
• Signal Types: Voltage (0-10V DC, ±10V DC), Current (4-20mA)
• Resolution: 12-bit or higher
• Isolation: Optically isolated channels
• Input Impedance: High input impedance to minimize loading on analog sources
• Accuracy: High accuracy in converting analog signals to digital values
• Power Supply: Supplied by the PLC backplane

Applications:

• Process Control: Used in industrial automation for monitoring analog variables such as temperature, pressure, and flow rate.
• Environmental Monitoring: Suitable for environmental monitoring systems where analog sensors provide critical data.
• Quality Control: Applied in manufacturing processes to monitor and control variables ensuring product quality.
• Energy Management: Used in energy management systems to monitor power consumption and optimize efficiency.
