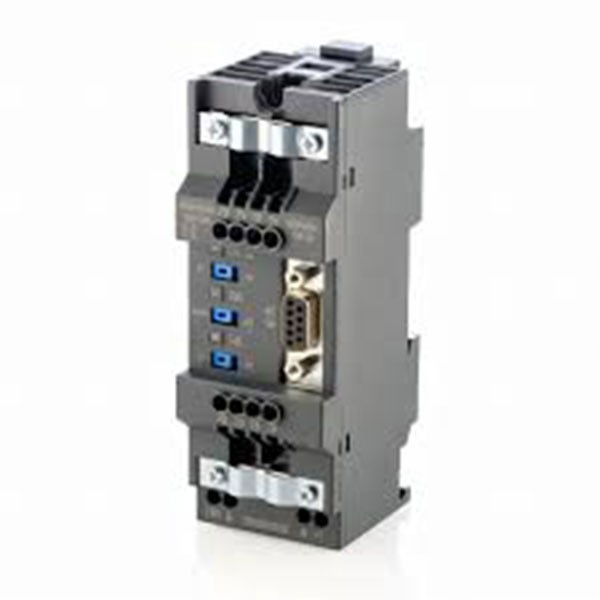

Siemens Simatic 6ES7972-0AA02-0XA0 best price seller in Bangladesh. Siemens Simatic DP RS485 repeater for Profibus/MPI bus systems. SIMATIC DP RS485 6ES7972-0AA02-0XA0 repeater for connecting the Profibus / MPI bus systems with maximum 31 KNOT, maximum 12 Mbit / s, degree of protection ip20DEGREE OF PROTECTION IP20. We have also Profibus Connector available at our warehouse. Siemens brand PLC, HMI, I/O module, Power Supply, and many more parts ready to stock.

Siemens Simatic DP 6ES7972-0AA02-0XA0 repeater for PROFIBUS:

• Baud rates search automatically
• Baud rate 45 kbps possible
• 24 V DC current
• Separation at the side of the right in the segment with embedded termination resistance
• segments 1 and 2 in bus activity indication in
• Separation of segment 1 and segment 2 is possible via a switch

Siemens Simatic 6ES7972-0AA02-0XA0 Details

• Rated value is 24 V DC
• Permissible range: lower limit is 20.4 V DC
• Permissible range: upper limit is 28.8 V DC
• Supply voltage: terminal block
• PROFIBUS cables: 2 terminal blocks
• Ambient temperature during operation: minimum 0 °C and maximum 60 °C
• Ambient temperature during storage/transportation: minimum -40 °C and maximum 70 °C
• Relative humidity Operation: maximum 95 %; at 25 °C
