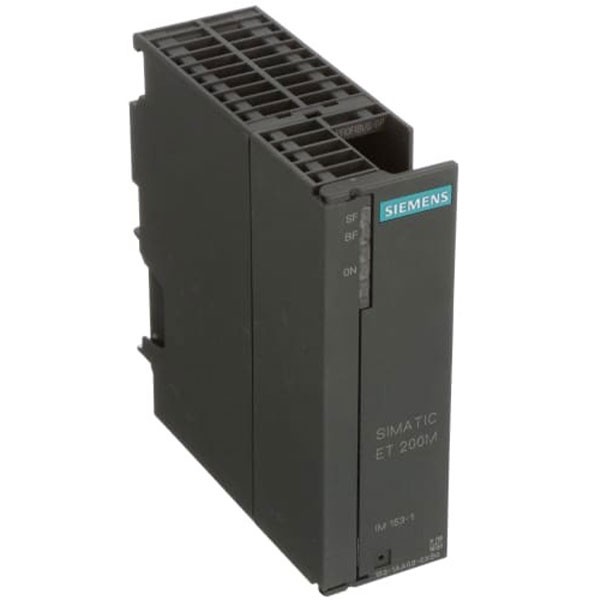

6ES7153-1AA03-0XB0 Siemens DP INTERFACE IM 153-1 ET-200M
Siemens 6ES7153-1AA03-0XB0ET 200S I/O System Interface Module which is distributed with IM151,151-1AA04-0AB0. DP INTERFACE IM 153-1 FOR ET 200M S7-300 MODULES. Therefore, SIMATIC DP, Connection IM 153-1 for ET 200M and max. 8 S7-300 modules. In addition, IM153-1 is based on 6ES7153-1AA03-0XB0 with conformal coating of S7-300 modules Siemens 6ES7153-1AA03-0XB0 price in bd.
Siemens 6ES7153-1AA03-0XB0
| Brand Name | Siemens |
| Product type. | DP INTERFACE IM 153-1 ET-200M |
| Part No. | 6ES7 153-1AA03-0XB0 |
| Product designation | IM 153-1 DP ST |
| Vendor type. | 801Dh |
| Supply Voltage Rated value | 24 V DC |
| Min. permissible range | 20.4 V |
| Max. permissible range | 28.8 V |
| external protection for power supply lines | no need |
| Mains buffering | 5 ms |
| Max. Current consumption | 350 mA |
| Inrush current | 2.5 A |
| Rated value (DC) | 5 V |
| Output current for backplane bus | 1 A max. |
| Power loss, type | 3 W |
| Addressing volume Inputs | 128 byte |
| Addressing volume Outputs | 128 byte |
| Max. modules per DP slave interface no. | 8 |
| Interfaces Transmission procedure | RS 485 |
| Interfaces Transmission rate | 12 Mbit/s max. |
| Detection of transmission rate | Yes |
| The output current of the interface | 90 mA max. |
| Connection Design | 9-pin sub-D socket |
| Bus/transmission protocol | PROFIBUS DP to EN 50170 |
| Ambient temp. | 0 °C min. |
| Ambient temp. | 60 °C max. |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
