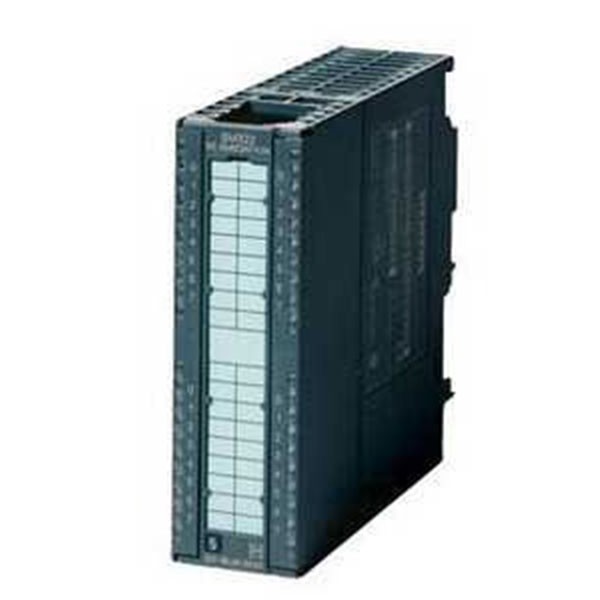

6ES7 322-1BL00-0AA0 Siemens S7-300, DIGITAL OUTPUT SM 322, DC 24V
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
ASK PRICE
/PCS
Share:
Top Selling Products
Simatic S7-300 6ES7 322-1BL00-0AA0, DIGITAL OUTPUT SM 322 in Bangladesh. S7-300 is one of the programmable controller (PLC) series products produced by Siemens.
Technical data:
| Load voltage L+ | |
| Rated value (DC) lower limit (DC) permissible range, the upper limit (DC) | 24 V 20.4 V 28.8 V |
| from load voltage L+ (loading voltage), max. | 160 mA |
| from backplane bus 5 V DC, max. | 110 mA |
| Power loss, type. | 6.6 W |
| digital outputs | 32 |
| Short-circuit protection threshold, type. | Electronic 1 A, available |
| Inductive shutdown voltage | -53 V |
| Controlling a digital input | Yes |
| Switching capacity of the outputs | |
Product Specification:
Digital input/output modules possess digital inputs/outputs for the automation system. Digital sensors and actuators can be connected via these modules.Simatic S7-300 6ES7 322-1BL00-0AA0.
Optimum adaptation: the number of I/O can be adapted to the respective task. with using an optional combination of modules. You can program the properties of certain modules. Here are programmable digital modules:
- Digital input module SM 321; DI 16 x DC 24 V with the process.
- Digital input module SM 321; DI 16 x DC 24 V/125 V.
- Digital output module SM 322; DO 16 x DC 24 V/0,5 A.
- SM 322; DO 8 x DC 24 V/0,5 A.
- Digital output module SM 322; DO 8 x AC120/230 V /2A ISOL.
- Digital output module SM 322; DO 8 x Rel. AC230V /5A.
- SM 327; DI 8/DO 8 x DC 24 V/0,5 A .
