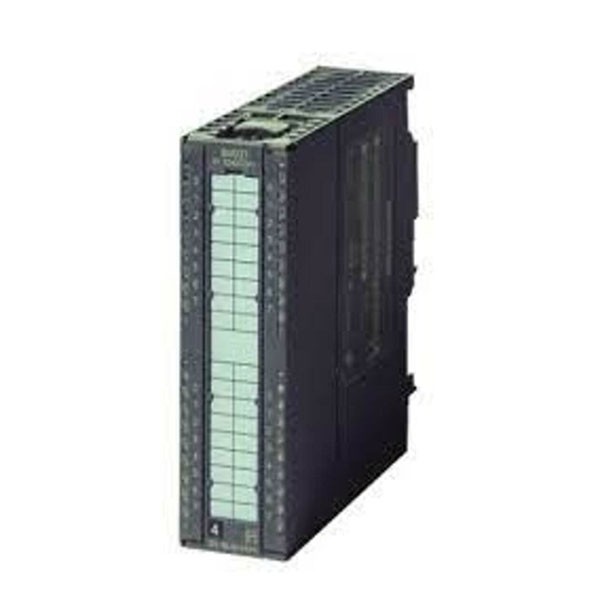

6ES7 321-1BL00-0AA0 Siemens S7-300 DIGITAL INPUT SM 321, 32DI, DC 24V

The Siemens S7-300 series is a modular automation system that offers a wide range of digital and analog I/O modules, CPUs, and communication processors. The SM 321 module (part number 6ES7 321-1BL00-0AA0) is a digital input module designed for use with the S7-300 PLC system.

Siemens S7-300 Digital Input Module SM 321 (6ES7 321-1BL00-0AA0)

General Information

• Manufacturer: Siemens
• Series: S7-300
• Model: SM 321
• Part Number: 6ES7 321-1BL00-0AA0
• Type: Digital Input Module

Technical Specifications

• Number of Inputs: 32 digital inputs
• Input Voltage: 24V DC
• Input Type: Sink (NPN) or Source (PNP) selectable
• Input Current: 7 mA per channel at 24V DC
• Input Delay: 4 ms for standard input (configurable to 1 ms or 10 ms for specific applications)
• Signal State Display: LED indicators for each input channel

Features

• Compact Design: Fits into standard S7-300 racks, providing high density of I/O in a compact form factor.
• Ease of Integration: Designed for seamless integration with S7-300 PLC systems.
• Diagnostics: Provides diagnostic capabilities to detect and indicate wiring errors and other faults.
• Isolation: Galvanic isolation between input channels and the backplane bus, ensuring reliable operation in noisy environments.
• Versatile Connectivity: Supports a wide range of 24V DC sensors and input devices.

Applications

• Industrial Automation: Used in various industrial automation tasks, such as monitoring machine states, reading sensor inputs, and interfacing with other digital devices.
• Process Control: Suitable for monitoring and controlling process variables in industries like chemical, pharmaceutical, and food and beverage.
• Building Automation: Used in HVAC systems, lighting control, and security systems within building management setups.
• OEM Integration: Ideal for original equipment manufacturers looking to integrate robust digital input capabilities into their machines and equipment.

Installation and Configuration

• Mounting: Designed for mounting on S7-300 standard DIN rail racks.
• Wiring: Screw-type terminals for secure and reliable wiring connections.
• Configuration: Configured using Siemens’ STEP 7 software, part of the TIA Portal suite, which provides a user-friendly interface for setting up and programming the module.

Summary

The Siemens SM 321 Digital Input Module (6ES7 321-1BL00-0AA0) is a reliable and versatile digital input module designed for use with the S7-300 PLC system.

With 32 digital inputs and a 24V DC input range, it is well-suited for a variety of industrial and commercial automation applications. Its compact design, diagnostic capabilities, and ease of integration make it an ideal choice for expanding the input capacity of S7-300 PLC systems.
