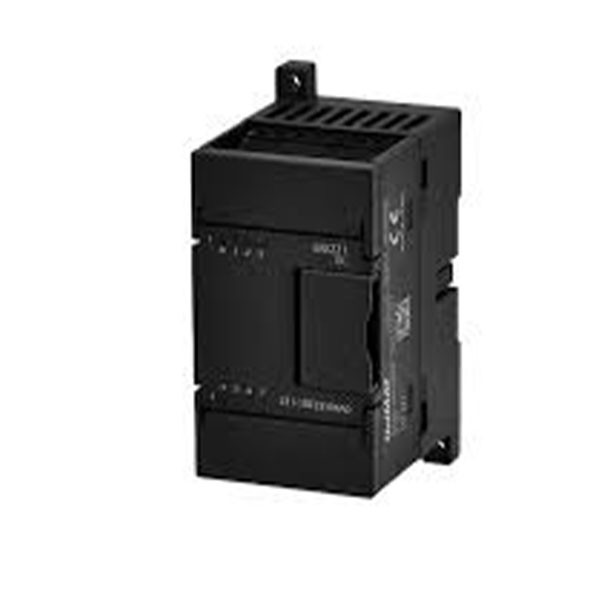

6ES7 221-1BF22-0XA0 | Digital Input Module EM-221 | SIMATIC S7-200 – 8 Input
Specification :
| Attribute | Value |
| For Use With | SIMATIC S7-200 |
| Module Type | Input |
| Input Type | Digital |
| Number of Inputs | 8 |
| Voltage Category | 5 V dc |
| Length | 80mm |
| Width | 46mm |
| Depth | 62mm |
| Dimensions | 80 x 46 x 62 mm |
Digital input EM-221 6ES7-221-1BF22-0XA0-
| Description Order Number | EM 222 Digital Output 4 x 24 VDC- 5 A 6ES7 222- 1BD22- 0XA0 | EM 222 Digital Output 4 x Relays- 10 A 6ES7 222- 1HD22- 0XA0 |
| Physical Size | ||
| Dimensions | 46 x 80 x 62 | 46 x 80 x 62 |
| Weight | 120 g | 150 g |
| Dissipation | 3W | 4W |
| VDC requirements +5 VDC +24 VDC | 40 mA — | 30 mA ON: 20 mA/output, 20.4 to 28.8 VDC |
| Output Features | ||
| Number of outputs | 4 | 4 |
| Type | Solid-state- MOSFET1 | Dry contact |
| Rated voltage | 24 VDC | 24 VDC or 250 VAC |
| Voltage range | 20.4 to 28.8 VDC type | 12 to 30 VDC or 12 to 250 VAC |
| Surge current | 30 A | 15 A for 4s 10% duty cycle |
| Logic 1 | 20 VDC | — |
| Logic 0 | 0.2 VDC | — |
| Rated current per point | 5A | 10 A resistive; 2 A DC inductive; 3 A AC inductive method |
Products details:
- Manufacturer: Siemens
- Product No. : 6ES7221-1BF22-0XA0
- Product type: SIMATIC S7-200, EM 221
- Input current 5 V DC, max. : 30 mA
- Digital inputs: Eight
- Power loss, type: 2 W
