Description reviews

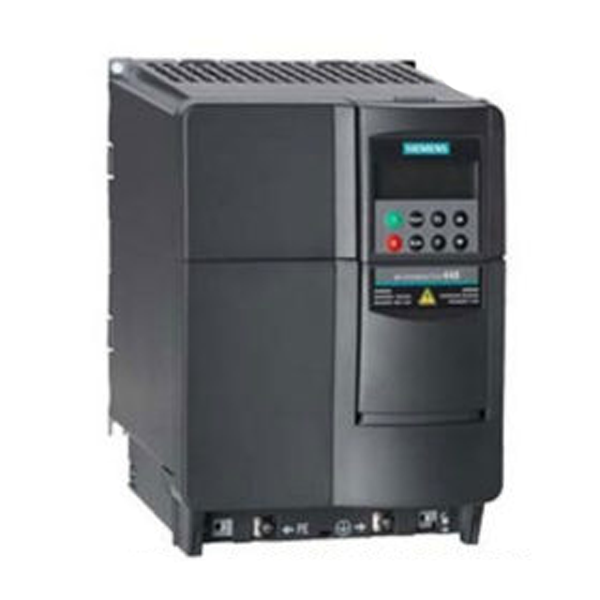

Three Phase Siemens Variable Frequency Drives VFD 0.5 KW to 300 KW .Siemens Inverter, 2.2KW, 440V, 3 Phase 6SL3210-5BE22-2UV0. Variable frequency drive VFD Siemens SINAMICS V20 6SL3210-5BB17-5BV1. The Siemens SINAMICS PM240 2.2kW 400V 3ph AC Power Module for G120 Series Inverter Drive 6SL3224-0BE22-2AA0.

Technical Specification:

Model	6SL3210-5BE22-2UV0 6SL3224-0BE22-2AA0
Series	Mircromaster 440 & 420
525 V – 600 V, ±10%	.3 to 200 HP (2.2 to 132 kW)
Input Frequency	45 to 66 Hz
Output Frequency	0 to 320 Hz
Frequency Resolution	0.01 Hz
Power Factor	0.98 at Nominal Load
Efficiency	>97.5%
Overload Capacity	Nominal Rated Output Current
Peak Overload Capacity	Seconds Every 20 Seconds

Inverter of Siemens Mircomaster440:

PWM (Switching) Frequency
FS4 to FS6	10 kHz Default FS4: 6 kHz
inverter Series	MM420
VFD Series	MM440
Short Circuit Withstand Rating	100,000 AIC
Frequency Reference	Resolution (10-bit)
Field Weakening Point	8 to 320 Hz
Acceleration/Deceleration Time	.0.1 to 3000 sec
Operating Temperature	14°F (-10°C) (no Frost) to 104°F
Storage Temperature	-40ºF (-40ºC) to 158ºF (70ºC)
Relative Humidity	.0 to 95% RH, Non-condensing, Non-corrosive
Air Quality	IEC 60068-2-60 (H2S [hydrogen sulfide] and SO2 [sulfur dioxide])
Enclosure Class	UL Type 12/IP 54 Options
